Tough and Affordable
The Mark I came from a very specific need we discovered on our first roof top tent adventure. We set up camp, got everything situated, and got our campfire going. We started prepping dinner, and we discovered a trip ender. We forgot the marshmallows. No big deal….oh but we have to pack up everything to drive our Jeep to the store…..This meant no Smore’s (pronounced shmores) for dessert.

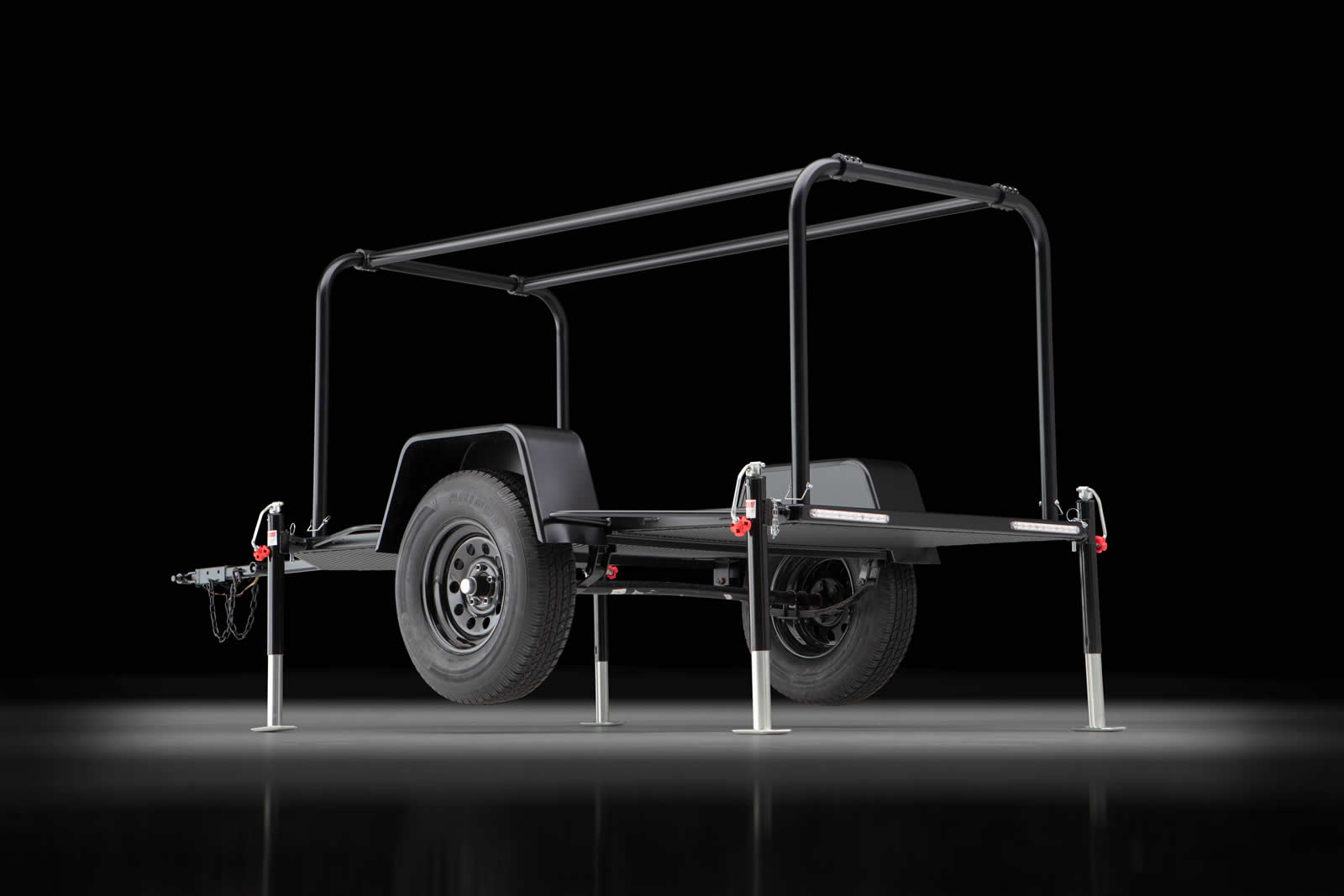

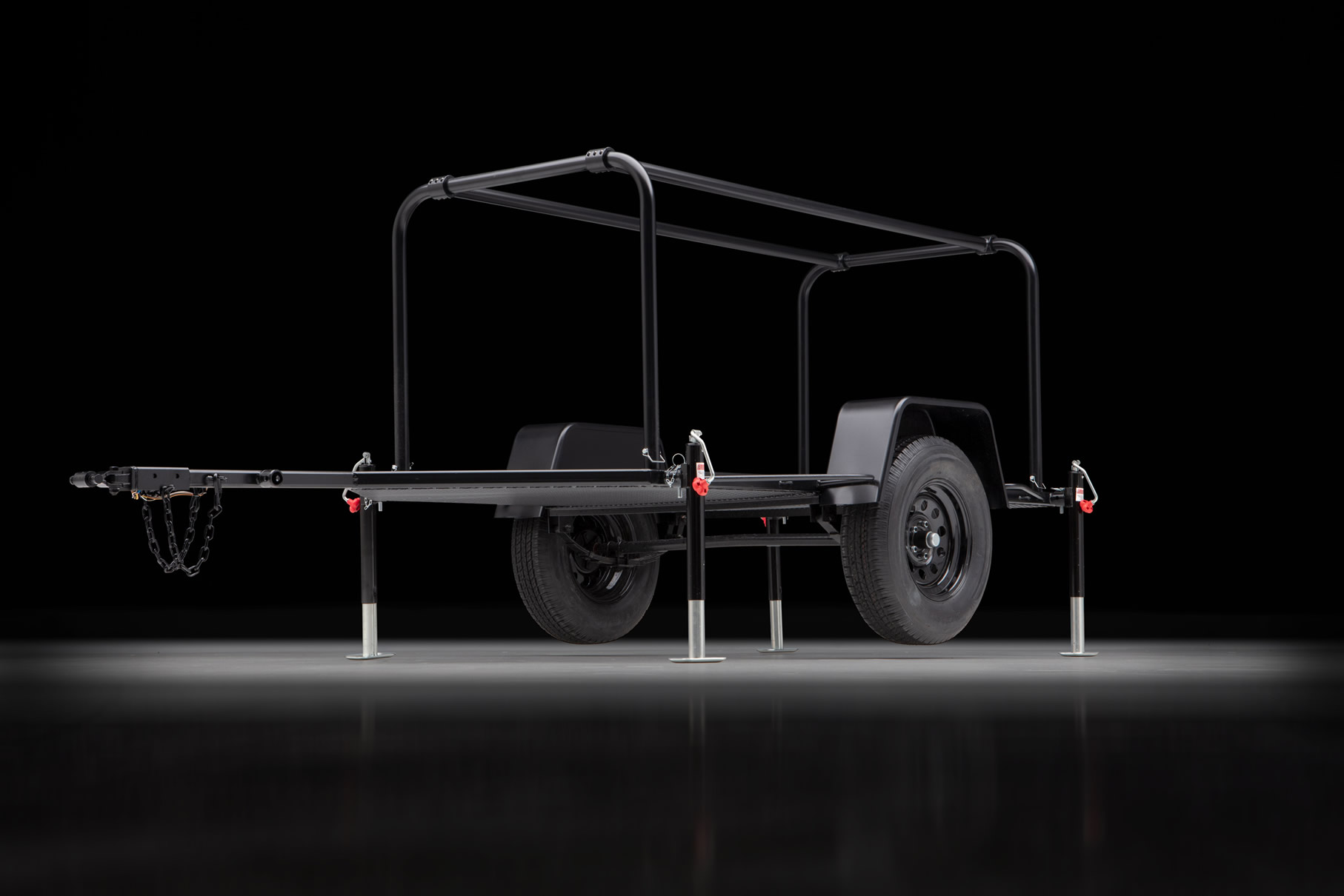

The Mark I is crafted from ¼ inch thick square and round tubing. It takes a massive machine to bend the tube, so there aren’t many trails that will make it nervous. We have contained 100% of the wiring inside the frame, so you never have to worry about ripping the wires off accidentally on an obstacle. The taillights are fully submersible and tough, but also extremely easy to replace if a tree just so happens to jump out behind you when you are backing into that perfect camping spot. Our entire concept for the trailer was to keep it tough, keep it simple, and leave room for people to do what they want to with it!
The Mark I is our family camper. We named it “The hiker/biker” because it will take care of all of your needs as a hiking/biking family. It has a 2000lb axle. It measures 48” between the fenders. It has a flat loading deck that is 44” wide. The loading deck is 80” long. This allows us to maintain an extremely narrow profile so the Hiker can follow you down any trail. The dry weight of the trailer is 600lbs. This gives you 1400lbs of gear capacity for hauling! Although the pictures do not show it, included is a 2″ receiver for any additional racks you want to put on the back!
Off-Road Trailer Dimensions
- Length: 13 feet (from hitch to tail)
- Distance between fenders: 49.5 inches
- Deck width: 45.5 inches
- Deck length 92 inches
- Distance between deck and upper hoop: 38 inches
- Distance between hoop verticals: 41.25 inches
- Axle clearance: 13 inches from ground (on 29 inch tires)
Frequently Asked Questions
We are located in Ozark, MO
• Length: 13 feet (from hitch to tail)
• Distance between fenders: 49.5 inches
• Deck width: 45.5 inches
• Deck length 92 inches
• Distance between deck and upper hoop: 38 inches
• Distance between hoop verticals: 41.25 inches
• Axle clearance: 13 inches from ground (on 29 inch tires)
Yes, the hoop height can be custom raised or lowered. The cross rails are fully adjustable. The tongue can be ordered at a custom length for longer watercraft applications or shorter for tighter trail requirements.
Yes, the hoop height can be custom raised or lowered. The cross rails are fully adjustable. The tongue can be ordered at a custom length for longer watercraft applications or shorter for tighter trail requirements.
The dry or empty weight is 600 pounds
It has a 2200 pound axle, tested to 1 ton (2000 pounds) load safely moved. It is recommended not to exceed 1600 pounds for routine use. It can be upgraded to a 3500 pound axle if intended use requires it.
Yes, as long as it is within the structural load capacity. It has a 2200 pound axle, tested to 1 ton (2000 pounds) load safely moved. It is recommended not to exceed 1600 pounds for routine use. It can be upgraded to a 3500 pound axle if intended use requires it.
The tongue weight is 44 pounds
1600 pounds
The static load for the trailer with a tent deployed on jacks is 8000 pounds
1/4″ thick steel on the entire trailer
Yes, you can use custom tires. In order to match the tires to the trailer during build, we require the tires to be delivered to our installation shop prior to build. This is so we can confirm proper axle placement for your wheel and/or tire package.
30 days from deposit to delivery currently
The trailer is built with epoxy primer and uv stable top powdercoat. That means our trailer is as protected as it can be against the elements. Touch ups may be needed and can be done with spray paint if the finish is marred during normal use.
Yes, we take all major credit cards, as well as Paypal.
Yes, trailer delivery is available. When you place your order, a freight estimate can be provided at the time of deposit.
Yes, you have a few options. You can give us a call at (417) 319-1321 to setup an appointment. Also, we have a display trailer in Ozark at this retail location:
Overland Addict, Nixa Missouri
380 E State Hwy CC B102
Nixa, MO 65714
Yes, you have a few options. You can give us a call at (417) 597–3393 to setup an appointment. Also, we have a display trailer in Ozark at this retail location:
Overland Addict, Nixa Missouri
380 E State Hwy CC B102
Nixa, MO 65714
Yes, we have thousands of colors available. We can provide a close color match to almost any vehicle. However, we guarantee an exact match as powder coating may differ from factory paint.
Yes, you can use custom tires. In order to match the tires to the trailer during build, we require the tires to be delivered to our installation shop prior to build. This is so we can confirm proper axle placement for your wheel and/or tire package. Additionally, we can match the following patterns:
We can match bolt patterns for Jeep JK, JL, and Gladiators – 5×5
We can match TJ Bolt Patterns 4.5×5
We can match Toyota Tacoma/4runner bolt patterns of 6×5.5
